base镜像

base 镜像有两层含义:

  1. 不依赖其他镜像,从 scratch 构建。
  2. 其他镜像可以之为基础进行扩展。

所以,能称作 base 镜像的通常都是各种 Linux 发行版的 Docker 镜像,比如 Ubuntu, Debian, CentOS 等

[root@docker ~]# docker pull centos
Using default tag: latest
latest: Pulling from library/centos
a1d0c7532777: Pull complete
Digest: sha256:a27fd8080b517143cbbbab9dfb7c8571c40d67d534bbdee55bd6c473f432b177
Status: Downloaded newer image for centos:latest
docker.io/library/centos:latest

base镜像实际内核是使用的主机内核

[root@docker ~]# uname -r
3.10.0-1160.108.1.el7.x86_64
[root@docker ~]# docker run -it centos
[root@e60dedc9687b /]# uname -r
3.10.0-1160.108.1.el7.x86_64

docker操作

docker pull 镜像名 下载容器镜像

docker images 查看本地镜像

-a显示所有镜像(默认不显示中间层镜像)

-q只显示本地所有镜像id号

[root@docker ~]# docker images
REPOSITORY    TAG       IMAGE ID       CREATED         SIZE
hello-world   latest    d2c94e258dcb   10 months ago   13.3kB
centos        latest    5d0da3dc9764   2 years ago     231MB
[root@docker ~]# docker images -a
REPOSITORY    TAG       IMAGE ID       CREATED         SIZE
hello-world   latest    d2c94e258dcb   10 months ago   13.3kB
centos        latest    5d0da3dc9764   2 years ago     231MB
[root@docker ~]# docker images -q
d2c94e258dcb
5d0da3dc9764

docker history 镜像id 查看容器构建过程

[root@docker ~]# docker history centos:latest
IMAGE          CREATED       CREATED BY                                       SIZE      COMMENT
5d0da3dc9764   2 years ago   /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago   /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago   /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB

构建镜像

使用docker commit命令构建镜像

以centos8为例,因centos8的yum源停止维护,我们需要挂载一个镜像源文件

先下载镜像源文件

wget http://mirrors.aliyun.com/repo/Centos-8.repo

启动一个centos容器,并挂载文件

[root@docker ~]# docker run \
-v ~/Centos-8.repo:/root/Centos-8.repo \
-it centos /bin/bash

#在容器中替换yum源文件
[root@c3f5ab7a1e69 ~]# cd /etc/yum.repos.d/
[root@c3f5ab7a1e69 yum.repos.d]# mkdir repo_bak
[root@c3f5ab7a1e69 yum.repos.d]# mv *.repo repo_bak/
[root@c3f5ab7a1e69 yum.repos.d]# cp /root/Centos-8.repo .

清除系统yum缓存,并重新生成新的yum缓存

[root@c3f5ab7a1e69 yum.repos.d]# dnf -y install epel-release
[root@c3f5ab7a1e69 yum.repos.d]# dnf clean all
[root@c3f5ab7a1e69 yum.repos.d]# dnf makecache
[root@c3f5ab7a1e69 yum.repos.d]# dnf repolist

生成新镜像

#退出容器
[root@c3f5ab7a1e69 yum.repos.d]# exit
exit

#使用命令在centos镜像基础上创建新的镜像,c3f5ab7a1e69为刚才操作的容器id(可以只填写前几位,确保与其他容器id不重复即可)
[root@docker ~]# docker commit c3f5ab7a1e69 centos-ali/vim
sha256:8b515f5024338f74ffab7915f14f4ce2b981a923d6be17788d45daa01ba36451
[root@docker ~]# docker images
REPOSITORY       TAG       IMAGE ID       CREATED          SIZE
centos-ali/vim   latest    8b515f502433   25 seconds ago   340MB
hello-world      latest    d2c94e258dcb   10 months ago    13.3kB
centos           latest    5d0da3dc9764   2 years ago      231MB

测试刚才的镜像

[root@docker ~]# docker run -it centos-ali/vim /bin/bash
[root@1fe0b7a07d84 /]# which vim
/usr/bin/vim

使用Dockerfile构建镜像

创建Dockerfile文件

[root@docker ~]# touch Dockerfile
[root@docker ~]# ls
[root@docker ~]# vim Dockerfile

填写以下命令

FROM centos-ali/vim
RUN yum -y install wget

运行创建新镜像

[root@docker ~]# docker build -t centos/wget-dockerfile .
[+] Building 10.6s (6/6) FINISHED                                        docker:default
 => [internal] load build definition from Dockerfile                               0.0s
 => => transferring dockerfile: 82B                                                0.0s
 => [internal] load metadata for docker.io/centos-ali/vim:latest                   0.0s
 => [internal] load .dockerignore                                                  0.0s
 => => transferring context: 2B                                                    0.0s
 => [1/2] FROM docker.io/centos-ali/vim:latest                                     0.0s
 => [2/2] RUN yum -y install wget                                                 10.2s
 => exporting to image                                                             0.3s
 => => exporting layers                                                            0.3s
 => => writing image sha256:54fd0b8b9d8bd58110c15648ebf84b986b969cf6732f0f436f59b  0.0s
 => => naming to docker.io/centos/wget-dockerfile                                  0.0s

docker build -t centos/wget-dockerfile .

docker build执行dockerfile文件

-t指定新镜像名为centos/wget-dockerfile

.表示dockerfile文件在当前路径,也可使用 -f指定配置文件路径

[root@docker ~]# docker images
REPOSITORY               TAG       IMAGE ID       CREATED             SIZE
centos/wget-dockerfile   latest    54fd0b8b9d8b   4 minutes ago       386MB
centos-ali/vim           latest    8b515f502433   About an hour ago   340MB
hello-world              latest    d2c94e258dcb   10 months ago       13.3kB
centos                   latest    5d0da3dc9764   2 years ago         231MB

使用docker history 查看镜像结构

[root@docker ~]# docker history centos
IMAGE          CREATED       CREATED BY                                       SIZE      COMMENT
5d0da3dc9764   2 years ago   /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago   /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago   /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB
[root@docker ~]# docker history centos-ali/vim:latest
IMAGE          CREATED             CREATED BY                                       SIZE      COMMENT
8b515f502433   About an hour ago   /bin/bash                                        109MB
5d0da3dc9764   2 years ago         /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago         /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago         /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB
[root@docker ~]# docker history centos/wget-dockerfile:latest
IMAGE          CREATED             CREATED BY                                       SIZE      COMMENT
54fd0b8b9d8b   5 minutes ago       RUN /bin/sh -c yum -y install wget # buildkit    46.4MB    buildkit.dockerfile.v0
<missing>      About an hour ago   /bin/bash                                        109MB
<missing>      2 years ago         /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago         /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago         /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB
[root@docker ~]#

发现这三个有共同的只读层,并且只读层是共享的

Docker Hub

docker search命令

[root@docker ~]# docker search centos
NAME                               DESCRIPTION                                      STARS     OFFICIAL
centos                             DEPRECATED; The official build of CentOS.        7713      [OK]
kasmweb/centos-7-desktop           CentOS 7 desktop for Kasm Workspaces             43
bitnami/centos-base-buildpack      Centos base compilation image                    0
dokken/centos-7                    CentOS 7 image for kitchen-dokken                6
dokken/centos-8                    CentOS 8 image for kitchen-dokken                6
spack/centos7                      CentOS 7 with Spack preinstalled                 2
dokken/centos-6                    EOL: CentOS 6 image for kitchen-dokken           0
atlas/centos7-atlasos              ATLAS CentOS 7 Software Development OS           2
spack/centos6                      CentOS 6 with Spack preinstalled                 1
ustclug/centos                     Official CentOS Image with USTC Mirror           0
dokken/centos-stream-8                                                              5
eclipse/centos_jdk8                CentOS, JDK8, Maven 3, git, curl, nmap, mc, …   5
dokken/centos-stream-9                                                              9

列表说明:
NAME:镜像名(镜像仓库源的名称)
DESCRIPTION:对该镜像的描述
STARS:类似 Github 里面的 star,表示点赞、喜欢的意思
OFFICIAL:是否 docker 官方发布
AUTOMATED:是否自动构建。

docker search参数运用

OPTIONS说明:
--automated :只列出 automated build类型的镜像;

--no-trunc :显示完整的镜像DESCRIPTION(描述),不省略;

-f <过滤条件>:列出收藏数(点赞)不小于指定值的镜像。

--limit 5:列出前5个镜像

-s <指定值> :表示列出星标数不小于指定值的镜像

镜像推送

docker push 镜像 tag标签

[root@docker ~]# docker push centos-ali/vim
Using default tag: latest
The push refers to repository [docker.io/centos-ali/vim]
ade3b10d5c4e: Preparing
74ddd0ec08fa: Preparing
#这里显示报错,是需要添加tag标签
denied: requested access to the resource is denied
#打tag
[root@docker ~]# docker tag centos-ali/vim 用户名/centos-cn-vim:latest
#上传
[root@docker ~]# docker push 用户名/centos-cn-vim
Using default tag: latest
The push refers to repository [docker.io/用户名/centos-cn-vim]
ade3b10d5c4e: Pushed
74ddd0ec08fa: Mounted from library/centos
latest: digest: sha256:37d748c9d2def7b1354d62e464e3a254fc4ae0dfea5d0f9bebae0c2be42a5b55 size: 741

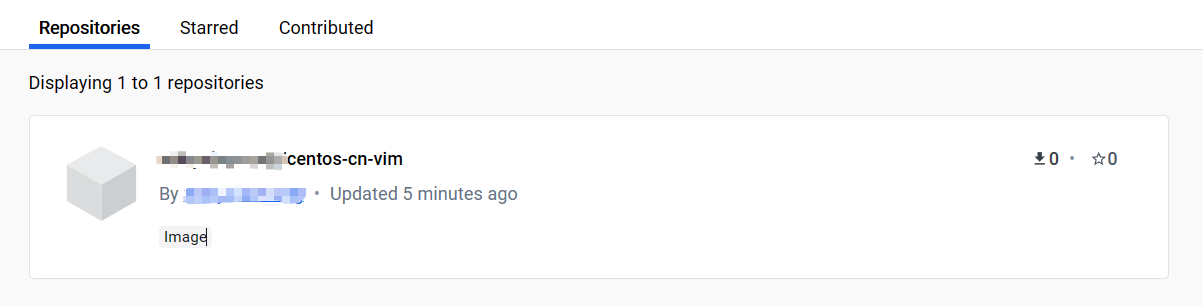

在docker hub上登录可以查看到

image-20240228123020312

尝试pull刚上传的image

#下载前先将旧的删除
[root@docker ~]# docker rmi 用户名/centos-cn-vim
#下载
[root@docker ~]# docker pull 用户名/centos-cn-vim
Using default tag: latest
latest: Pulling from 用户名/centos-cn-vim
Digest: sha256:37d748c9d2def7b1354d62e464e3a254fc4ae0dfea5d0f9bebae0c2be42a5b55
Status: Downloaded newer image for wanyulaowang/centos-cn-vim:latest
docker.io/用户名/centos-cn-vim:latest
#查看镜像
[root@docker ~]# docker images
REPOSITORY                   TAG       IMAGE ID       CREATED          SIZE
centos/wget-dockerfile       latest    54fd0b8b9d8b   54 minutes ago   386MB
centos-ali/vim               latest    8b515f502433   2 hours ago      340MB
用户名/centos-cn-vim   latest    8b515f502433   2 hours ago      340MB
hello-world                  latest    d2c94e258dcb   10 months ago    13.3kB
centos                       latest    5d0da3dc9764   2 years ago      231MB

Docker镜像优化

Docker 镜像采用的是层级结构,一个镜像最多拥有127层UnionFS。每条
Dockerfile命令都会创建一个镜像层,增加镜像大小。在生产环境中使用Docker
容器时,要尽可能地精简Docker镜像,减少UnionFS的层数。
精简镜像不仅能缩短新镜像的构建时间,还能减少磁盘用量。由于精简后的
镜像更小,用户在拉取镜像时能节省时间,部署服务的效率也能得到提升。精简镜像包含的文件更少,更加不容易被攻击,提高了镜像的安全性。

base镜像优化

base 镜像优化就是在满足环境要求的前提下使用最小的base镜像。常用的 Linux base镜像有CentOS、 Ubuntu、 Alpine等,其中一些比较小的 base镜像适合作为精简镜像的基础镜像,如 Alpine.BusyBox等。
下面分别拉取Alpine与BusyBox的镜像进行对比,示例代码如下:

[root@docker ~]# docker pull busybox
[root@docker ~]# docker pull alpine
[root@docker ~]# docker images
REPOSITORY                   TAG       IMAGE ID       CREATED             SIZE
centos/wget-dockerfile       latest    54fd0b8b9d8b   About an hour ago   386MB
centos-ali/vim               latest    8b515f502433   2 hours ago         340MB
hello-world                  latest    d2c94e258dcb   10 months ago       13.3kB
busybox                      latest    beae173ccac6   2 years ago         1.24MB
alpine                       latest    c059bfaa849c   2 years ago         5.59MB
centos                       latest    5d0da3dc9764   2 years ago         231MB

Scratch是一个空镜像,只能用于构建其他镜像,常用于执行一些包含了所有依赖的二进制文
件。如果以Scratch为base镜像,意味着不以任何镜像为基础,下面的指令将作为镜像的第一层存在。
BusyBox相对于 Scratch多了一些常用的Linux命令,BusyBox的官方镜像大小只有1MB多一点,
非常适合构建小镜像。
Alpine是一款高度精简又包含了基本工具的轻量级 Linux发行版,官方 base镜像只有5MB多一
点,很适合当作base镜像使用。

Dockerfile优化

用户在定义Dockerfile文件时,使用太多的RUN命令,会导致镜像非常臃肿,甚至超出可构建
的最大层数。根据优化原则,应该将多条RUN命令合并为一条命令,精心设计每一个RUN命令,
减小镜像体积,并且精心编排,最大化地利用缓存。
下面创建一个Dockerfile文件,示例代码如下:

[root@docker ~]#  vim Dockerfile
FROM centos-ali/vim
RUN yum -y install wget
RUN yum -y install net-tools
RUN yum -y install nano
RUN yum -y install httpd
EXPOSE 80
CMD systemctl start httpd

接着,使用这个Dockerfile构建一个新的镜像,示例代码如下:

[root@docker ~]# docker build -t centos/vim-bulky .
 => [internal] load build definition from Dockerfile                                                       0.0s
 => => transferring dockerfile: 197B                                                                       0.0s
 => [internal] load metadata for docker.io/centos-ali/vim:latest                                           0.0s
 => [internal] load .dockerignore                                                                          0.0s
 => => transferring context: 2B                                                                            0.0s
 => [1/5] FROM docker.io/centos-ali/vim:latest                                                             0.0s
 => CACHED [2/5] RUN yum -y install wget                                                                   0.0s
 => CACHED [3/5] RUN yum -y install net-tools                                                              0.0s
 => CACHED [4/5] RUN yum -y install nano                                                                   0.0s
 => CACHED [5/5] RUN yum -y install httpd                                                                  0.0s
 => exporting to image                                                                                     0.0s
 => => exporting layers                                                                                    0.0s
 => => writing image sha256:a5cf6c1036f985d2462d1bc5fbac3f3de78f252e148ba532cdde31a72ebadc1e               0.0s
 => => naming to docker.io/centos/vim-bulky

从以上示例中可以看到,整个镜像构建的过程是十分烦琐的。
查看新镜像的大小与 UnionFS的层数,示例代码如下:

[root@docker ~]# docker images
REPOSITORY                   TAG       IMAGE ID       CREATED             SIZE
centos/vim-bulky             latest    a5cf6c1036f9   4 minutes ago       439MB
[root@docker ~]# docker history centos/vim-bulky:latest
IMAGE          CREATED             CREATED BY                                       SIZE      COMMENT
a5cf6c1036f9   5 minutes ago       CMD ["/bin/sh" "-c" "systemctl start httpd"]     0B        buildkit.dockerfile.v0
<missing>      5 minutes ago       EXPOSE map[80/tcp:{}]                            0B        buildkit.dockerfile.v0
<missing>      5 minutes ago       RUN /bin/sh -c yum -y install httpd # buildk…   22.8MB    buildkit.dockerfile.v0
<missing>      5 minutes ago       RUN /bin/sh -c yum -y install nano # buildkit    15.2MB    buildkit.dockerfile.v0
<missing>      5 minutes ago       RUN /bin/sh -c yum -y install net-tools # bu…   15MB      buildkit.dockerfile.v0
<missing>      About an hour ago   RUN /bin/sh -c yum -y install wget # buildkit    46.4MB    buildkit.dockerfile.v0
<missing>      2 hours ago         /bin/bash                                        109MB
<missing>      2 years ago         /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago         /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago         /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB
[root@docker ~]#

从以上示例中可以看到,新镜像 centos/vim- -bulky的大小是439MB,而镜像的 UnionFS层数是
10层。
这样编写Dockerfile导致新镜像非常庞大,既增加了构建部署的时间,也很容易出错。
下面对 Dockerfile进行优化,示例代码如下:

[root@docker ~] vim Dockerfile
FROM centos-ali/vim
RUN yum -y install wget && \
        yum -y install net-tools && \
        yum -y install nano && \
        yum -y install httpd
EXPOSE 80
CMD systemctl start httpd

在 Dockerfile中使用“&”与“\”将多条命令合成一条,“&&”表示命令还没有结束,“\”表示换行。
下面通过优化过的Dockerfile构建新镜像,示例代码如下:

[root@docker ~]# docker build -t centos/vim-portable .
[+] Building 22.5s (6/6) FINISHED                                                                docker:default
 => [internal] load build definition from Dockerfile                                                       0.0s
 => => transferring dockerfile: 204B                                                                       0.0s
 => [internal] load metadata for docker.io/centos-ali/vim:latest                                           0.0s
 => [internal] load .dockerignore                                                                          0.0s
 => => transferring context: 2B                                                                            0.0s
 => CACHED [1/2] FROM docker.io/centos-ali/vim:latest                                                      0.0s
 => [2/2] RUN yum -y install wget &&  yum -y install net-tools &&  yum -y install nano &&  yum -y instal  22.1s
 => exporting to image                                                                                     0.3s
 => => exporting layers                                                                                    0.3s
 => => writing image sha256:b78faa3c5a9591de2657cf3370362e049c3a56a52558771fc80e366f29ae057c               0.0s
 => => naming to docker.io/centos/vim-portable

发现过程精简,再查看大小和结构

[root@docker ~]# docker images
REPOSITORY                   TAG       IMAGE ID       CREATED             SIZE
centos/vim-portable          latest    b78faa3c5a95   35 seconds ago      396MB
centos/vim-bulky             latest    a5cf6c1036f9   8 minutes ago       439MB
centos/wget-dockerfile       latest    54fd0b8b9d8b   About an hour ago   386MB
centos-ali/vim               latest    8b515f502433   2 hours ago         340MB
wanyulaowang/centos-cn-vim   latest    8b515f502433   2 hours ago         340MB
hello-world                  latest    d2c94e258dcb   10 months ago       13.3kB
busybox                      latest    beae173ccac6   2 years ago         1.24MB
alpine                       latest    c059bfaa849c   2 years ago         5.59MB
centos                       latest    5d0da3dc9764   2 years ago         231MB
#查看旧镜像
[root@docker ~]# docker history centos/vim-bulky:latest
IMAGE          CREATED             CREATED BY                                       SIZE      COMMENT
a5cf6c1036f9   8 minutes ago       CMD ["/bin/sh" "-c" "systemctl start httpd"]     0B        buildkit.dockerfile.v0
<missing>      8 minutes ago       EXPOSE map[80/tcp:{}]                            0B        buildkit.dockerfile.v0
<missing>      8 minutes ago       RUN /bin/sh -c yum -y install httpd # buildk…   22.8MB    buildkit.dockerfile.v0
<missing>      8 minutes ago       RUN /bin/sh -c yum -y install nano # buildkit    15.2MB    buildkit.dockerfile.v0
<missing>      8 minutes ago       RUN /bin/sh -c yum -y install net-tools # bu…   15MB      buildkit.dockerfile.v0
<missing>      About an hour ago   RUN /bin/sh -c yum -y install wget # buildkit    46.4MB    buildkit.dockerfile.v0
<missing>      2 hours ago         /bin/bash                                        109MB
<missing>      2 years ago         /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago         /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago         /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB
#查看优化后的新镜像
[root@docker ~]# docker history centos/vim-portable:latest
IMAGE          CREATED         CREATED BY                                       SIZE      COMMENT
b78faa3c5a95   2 minutes ago   CMD ["/bin/sh" "-c" "systemctl start httpd"]     0B        buildkit.dockerfile.v0
<missing>      2 minutes ago   EXPOSE map[80/tcp:{}]                            0B        buildkit.dockerfile.v0
<missing>      2 minutes ago   RUN /bin/sh -c yum -y install wget &&  yum -…   56.4MB    buildkit.dockerfile.v0
<missing>      2 hours ago     /bin/bash                                        109MB
<missing>      2 years ago     /bin/sh -c #(nop)  CMD ["/bin/bash"]             0B
<missing>      2 years ago     /bin/sh -c #(nop)  LABEL org.label-schema.sc…   0B
<missing>      2 years ago     /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0…   231MB

centos/vim-portable的7层相比刚才的centos/vim-bulky的10层少了不少

是一名喜欢每天折腾的咸鱼! 也是一名半退役的算竞摸鱼选手,参与过icpc,天梯赛,蓝桥等比赛.Datawhale 优秀队长 --------------------------------------------------- 认证类: 华为 Harmony OS应用开发者高级认证, NISP 一级认证, H3C NE-RS网络工程师认证 --------------------------------------------------- 荣获奖项荣誉: 第十八届“挑战杯”全国大学生课外学术科技作品竞赛 “揭榜挂帅”专项赛全国特等奖、 “美亚杯”第八届中国电子取证大赛 三等奖、 中国高校计算机大赛-团体程序天梯赛 省高校一等奖、 “蓝桥杯”省二等奖、 H3C新华三杯 省三等奖、 中国移动“梧桐杯”大数据创新大赛 省三等奖、 百度 飞桨领航团 金牌团长 https://pan.imgs.run/s/GQFr
最后更新于 2024-03-09
